【Patented】 Semi-automatic Multifunctional Twin-side & Round Bottle Labeling Machine

LA-305

This multifunctional labeling machine is applicable for various shapes of bottle: Round / Oval / Square / Polygon bottles. 1 label with full or partial warp-around and continuous 2 labels at one time to be front label + back label are all applicable. User-friendly design and color LCD touch screen (HMI) provide simple operation interface. This labeler has been taken out a patent on innovation labeling design for applying more types of bottle and higher labeling accuracy.

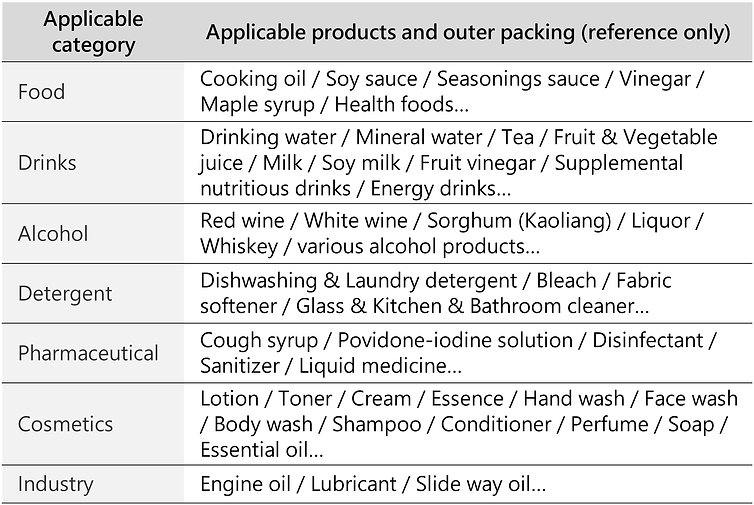

Field of Application

  • Many kinds of bottle shape: Round / Oval / Square / Polygon bottles.

  • Wide range of label height: 10 mm ~ 250 mm

  • All kinds of bottle material: Plastic (PE, PVC, PET…) / Glass / Metal bottles.

  • Normal paper or transparent label are both applicable. (only compatible with adhesive label in a roll.)

  • Most suitable for small production volume but often producing many different products.

Features

  • Control system: MITSUBISHI (Japanese brand) PLC and 7” color touch screen (HMI) for convenient operation.

  • Labeling system: “Stepper motor” combined with patented bottle feeding device of “X-Y axis positioning” can provide extremely accurate labeling quality (± 0.5mm) and easier adjustments for labeling position.

  • Object and label sensor: SICK (German brand) sensors provide high sensitivity without wasting many labels due to detecting failure.

  • Adjusting system: SIKO (German brand) position indicator with hand-wheel makes adjusting or recording position conveniently.

  • Memory system: 50 sets of memory storage are perfect for various products without entering settings repeatedly.

  • Quick changeover for different products: Simply replace bottle mould by disassembling 4 pcs of screw on the mould.

  • Most changeover or adjustments can be done instantly without using tools.

  • 2 start-up modes: by “Foot Switch” manually or “Object Sensor” automatically.

  • Compatible with various printing equipment: Hot stamping printer / Inkjet printer / Thermal (Heat) transfer printer / Color label printer. Labeling and printing dates and batch no. are completed at the same time.

  • Main construction is made of SUS#304 stainless steel and aluminum alloy which meet production regulations of food, cosmetics, biotech and pharmaceutical industries.

  • 4 castors on machine cabinet: Easy to move labeling machine anywhere for more flexible space application.

  • Less maintenance with long durable life. The best choice of labeling machine.

Specification

Recommended Models

FL-020F
Semi-automatic Overflow
Filling Machine
(Equal Liquid-level)
